Test a wide range of wire rope diameters

LRM XXI Wire Rope Diagnostic Systems

Laboratory LRM-NDE provides the most innovative Wire Rope Diagnostic System for Magnetic Rope Testing (MRT) method in Non-Destructive Testing (NDT). The LRM®XXI Wire Ropes Diagnostic System can help to increase the safety and lifetime of wire ropes.


The LRM®XXI Diagnostic System is very helpful in evaluating the technical condition of the tested wire rope in full cross section and in full available length of wire rope in the fastest way. MRT Equipment can detect weakness section of the rope expressed in percentage of loss of metallic area.

Wire Rope Testing Systems

The LRM®XXI Wire Rope Diagnostic System (Wire Rope Tester) is Portable, Handheld and Lightweight.
The LRM®XXI Wire Rope Diagnostic System enables detecting long changes in the rope cross-section due to corrosion and wear (LMA sensor) and  local changes, e.g. broken wires, corrosion pitting and other local rope damage (LF sensor).
The inspection results are said to be reliable, accurate and repeatable.
​Due to the use of Magnetic method for testing of wire ropes the external coating (e.g. grease and anti-corrosion protection) does not influence the quality of the results.
The LRM®XXI Diagnostic System is designed, constructed and manufactured to work in harsh environmental conditions.

Wire Rope Testing Systems

Components of the LRM®XXI Wire Rope Diagnostic System

LRM NDE Wire Rope Measuring Head
Wire Rope Testing Systems

1. LRM® MH Measuring Head with guiding system and LRM® Encoder is equipped with: - Sensor LMA and Sensor LF:
a) Loss of Metallic Area (LMA) Sensor, enables the localization and evaluation of long changes of metallic cross section area in a tested rope, e.g. due to corrosion or wear. The
value of LMA can be expressed in percentage with reference to metallic cross section of
tested rope.
b) Local Flaws (LF) Sensor, enables the localization and evaluation of local defects  e.g. broken wires, corrosion pitting in full cross section of wire rope.

​

​

✿ The LRM® Measuring Head has smooth housing with stainless steel.
✿ The Measuring Head does not have any electronic components which are sensitive to water.
✿ IP67 protection level for sensors inside the Measuring Heads and all components.
✿ Sliders or rollers adjust the guiding system to ensure the central wire rope drive.
✿ Encoder enabling the measurement of testing speed, direction and distance of the tested rope for the Measuring Head.

Standard solutions of  LRM® MH Measuring Heads

The catalogue below shows standard solutions of  LRM® Measuring Heads (inspection range - diameters).

Wire Rope Different Diameter Tester

As a manufacturer with over 40 years of experience in the development of MRT equipment, we can adjust the Measuring Heads construction and inspection range to any customer requirements.

DOWNLOAD A PDF BROCHURE ON YOUR DESIRED WIRE ROPE SIZE MEASURING HEAD

Wire Rope Measuring Head 30
Wire Rope Measuring Head 90
Wire Rope Measuring Head 40
Wire Rope Measuring Head 100
Wire Rope Measuring Head 50
Wire Rope Measuring Head 60
Wire Rope Measuring Head 80
Wire Rope Measuring Head 120
Wire Rope Measuring Head 180
Portable Wire Rope Testing Systems
Portable Wire Rope Testing Systems
Broken Wire Strand Tester

2. DIGITAL LRM®XXI Recorder for collection of inspection data with built-in memory for 10 km of testing results.


✿ The Recorder is compatible with all Measuring Heads.
✿ The MRT Equipment can inspect the wire rope with speed range from 0,05 m/s – 10 m/s and can be used during the wire rope operation and during the production.
✿ The Recorder and the Software can be connected via RS232 or USB.
✿ The Recorder housing is resistant to mechanical damage.
✿ Built-in battery enabling 12h minimum continuous work.
✿ Housing and all external components have IP67 protection level.
✿ Size: 216 x 180 x 102mm,
✿ Weight: 2,8kg



LRM®Rope-21 Diagnostic Software
for the visualization in real time of the collected data from LRM®XXI Recorder, which is easy and intuitive to use.

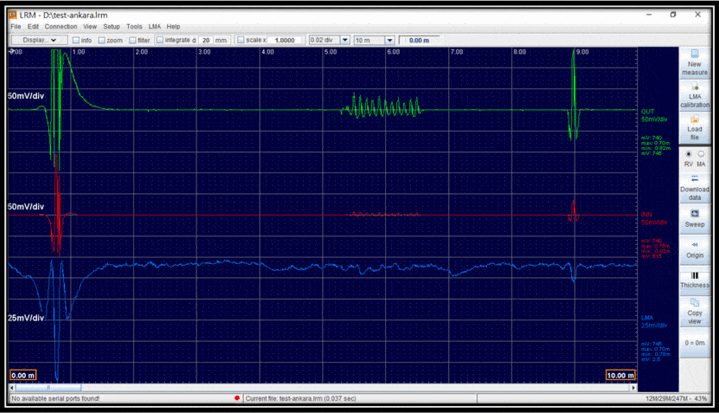

LRM®Rope-21 Diagnostic Software has a lot of useful features for evaluation and interpretation of the collected data and prepare expertise, for example the automatic calculation of loss of metallic cross-section area in percentage in relation to the nominal metallic cross-section area of the tested wire rope and comparison with discard criteria at summing distances 6d and 30d.

Wireless Encoder Wire Rope Tester

The LRM®XXI-B Custom Recorder offer a  (WIRELESS CONNECTION). it has been developed to record long distance MRT Inspection. The recorder is characterised by its specially designed housing which enables the recorder to be mounted directly onto the measuring head.


✿ Size: 152x195x55mm,
✿ Weight: 1,5kg

LRM® Rope - 21  Diagnostic Software

Metal Rope Diagnostic Systems

Each set of MRT Equipment is additionally equipped with signal cables and necessary accessories.

In order to deliver the MRT Equipment in the best possible condition to customer and safe transportation to place of inspections our MRT equipment is packaged in cases that are waterproof and resistant to mechanical damage.

LRM® Training course



Laboratory LRM-NDE provides the LRM® Training course as well. The training course regarding not only the information how to use the LRM®XXI Diagnostic System.


The LRM Training course regarding also the general approach for the MRT inspections,  information how to carry out the wire rope inspection, theoretical aspect regarding the wire rope, interpretation and evaluation of collected data as well.

LRM® training course is carried out by our skilled trainer that has experience in carrying out the MRT inspection using the LRM®XXI Diagnostic System.


The LRM® Training can be carried out in customer facilities, office, vessel or in our well-equipped laboratory in Poland. Laboratory LRM-NDE provides the LRM® procedure as well.

Crane Wire Rope Testing Services
Crane Wire Rope Testing Services

Cableway Inspection

The inspection of the technical condition of cableway wire ropes with the use of LRM®XXI Diagnostic System enables to detect of the most common various of wire rope wear, such as:  external broken wires or abrasions.
LRM® Measuring Head for Cableway Inspection Services​ is equipped in two different types of sensors:

  • LF sensor, that enables the localization and evaluation of local defects,

  • LMA sensor, that enables the localization and evaluation of long changes of metallic cross section area in a tested rope.

Due to use this two types of sensors in LRM®XXI Diagnostic System, it is possible to perform accurate diagnostics of the place of strands rope, with detection of local defects and rope deformation in the place where the strands are interlaced (broken and loosened external wires, flattened external strands).

The advantages of Cableway Inspection Services with the use of LRM®XXI Diagnostic System:

  • reduced time of wire rope inspection compared to the visual inspection while maintaining reliability to detect all local external defects,

  • maintenance a high level of safety of transported persons due to possibility of detect the weakest section of wire rope,

  • guarantee of detecting all discontinuities in the wire rope cross section along with deformations and distortions.


Laboratory LRM-NDE manufactures special designed measuring head for inspection of carrying ropes.

The LRM®XXI Diagnostic Systems completely fulfils the requirements of standard EN 12927:2019

Example Cableway Photos

Cable Way Testing
Cable Way Testing
Cable Way Testing
Cable Way Testing
Cable Way Testing
Cable Way Testing
